Guide rail 1-leaf

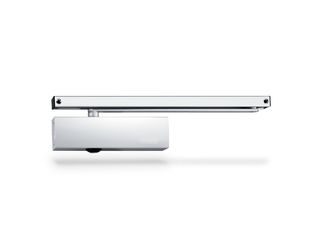

TS wood complete package * Overhead door closer with guide rail for single leaf doors up to 950 mm leaf width
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- All functions can be set from the front (except for closing force)
- Door closer, can be used for right and left hand doors
- Door closer, can be used for leaf and transom installation
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 950 mm leaf width
- Door leaf and transom installation on the hinge and opposite hinge side
Technical data
| TS wood complete package | |
| Closing force in accordance with EN 1154 | EN 3 |
| Leaf width (max.) | 950 mm |
| Opening angle (max.) | 180 ° |
| Identical design for DIN left and DIN right | Yes |
| Standard conformity | EN 1154:1996/A1:2002/AC:2006 |
| Suitability for fire protection doors | Yes |
| Length | 226 mm |
| Width | 46 mm |
| Height | 60 mm |
| Closing force adjustable | No |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | No |
| Safety valve againts overload | Yes |
| Thermo-control valves | Yes |
| Hold-open function | Optional |
Downloads
TS 3000 V overhead door closer with guide rail
